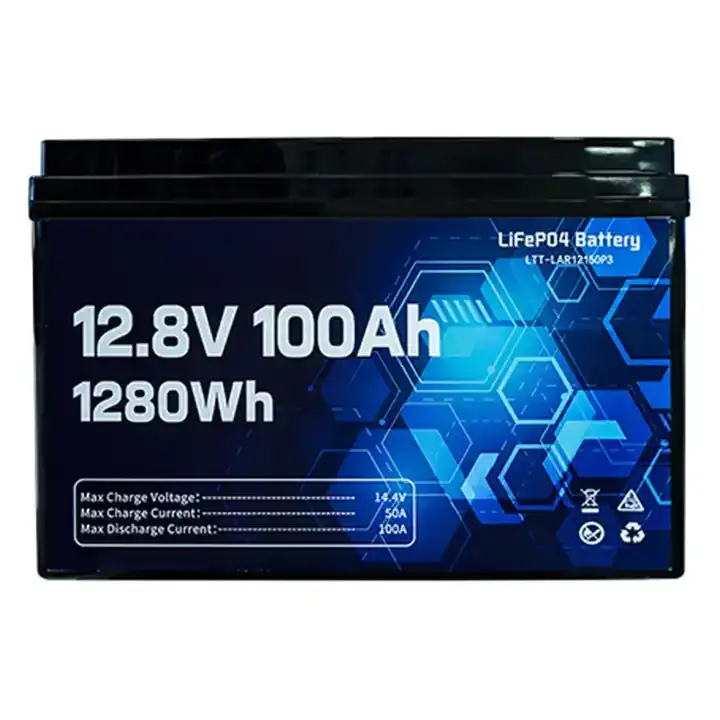

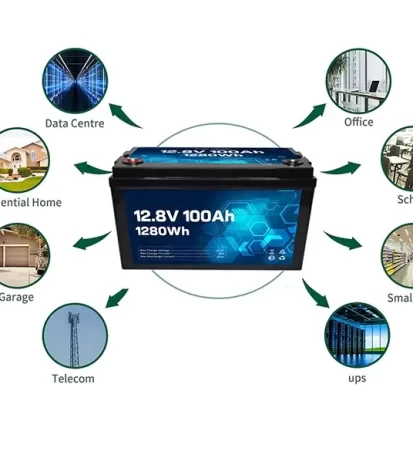

12.8V AC LIFEPO4 Battery for Electronic Golf Carts

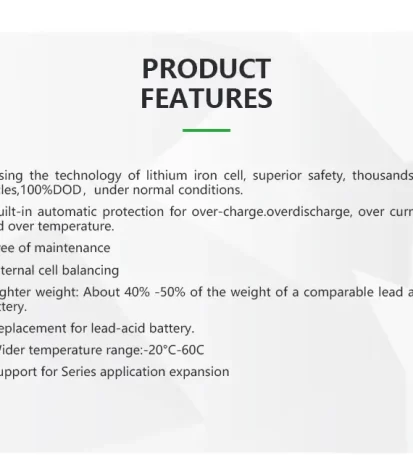

Using the technology of lithium iron cell, superior safety, thousands of cycles,100%DOD,under normal conditions.
Built-in automatic protection for over-charge,over-discharge, over current, and over temperature.
Free of maintenance
Internal cell balancing
Lighter weight: About 40% -50% of the weight of a comparable lead acid battery.
Replacement for lead-acid battery.Wider temperature range:-20°C-60CSupport for Series application expansion

Category: Tag:

Description

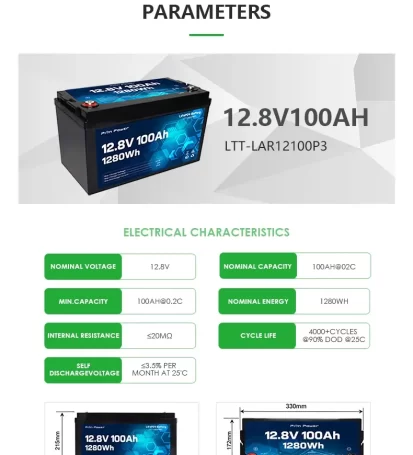

Nominal Voltage12.8V
Nominal Capacity[email protected]
Min. Capacity[email protected]
Nominal Energy1280Wh
Internal Resistance≤20mΩ
Cycel Life4000+Cycles @ 90% DoD@25℃
Self Discharge≤3.5% per month at 25℃
Max.Charging Voltage14.0~14.4V
Charging ModeCC-CV
Standard Charge Current20A
Max. Charging Current50A
Standard Discharge Current20A
Max. Continuous Discharging Current100A
Max. Pulse Current250A(＜3S)
Discharging Cut-off Voltage10.8V
Charging Temperature0℃ to 45 ℃(32°F to 113°F) @ 60±25% Relative Humidity
Discharge Temperature-20℃ to 60 ℃(-4°F to 140°F) @ 60±25% Relative Humidity
Storage Temperature0℃ to 45 ℃(32°F to 113°F) @ 60±25% Relative Humidity
CasingPlastic
Dimension(L*W*H*TH)330*172*215mm
WeightApprox.12.8Kgs
TerminalM8
Ingress ProtectionIP65










Get your no-obligation quote NOW.
