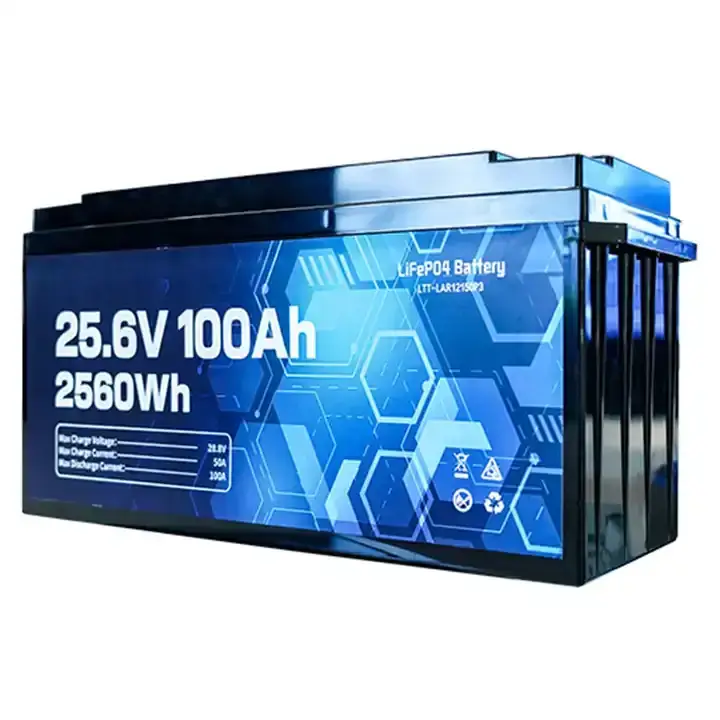

25.6V AC LIFEPO4 Battery for EV Golf Carts

Using the technology of lithium iron cell, superior safety, thousands of cycles,100%DOD，under normal conditions.
Built-in automatic protection for over-charge,over-discharge, over current, and over temperature.
Free of maintenance
Internal cell balancing
Lighter weight: About 40% -50% of the weight of a comparable lead acid battery.
Replacement for lead-acid battery.Wider temperature range:-20°C-60CSupport for Series application expansion

Category: Tag:

Description

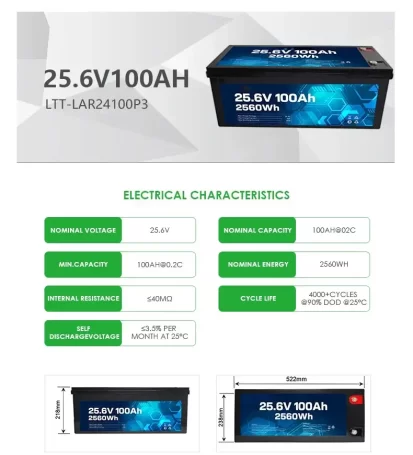

Nominal Voltage25.6V
Nominal Capacity[email protected]
Min. Capacity[email protected]
Nominal Energy2560Wh
Internal Resistance≤40mΩ
Cycel Life4000+Cycles @ 90% DoD@25℃
Self Discharge≤3.5% per month at 25℃
Max.Charging Voltage28.0~28.8V
Charging ModeCC-CV
Standard Charge Current20A
Max. Charging Current50A
Standard Discharge Current50A
Max. Continuous Discharging Current100A
Max. Pulse Current200A(＜3S)
Discharging Cut-off Voltage21.6V
Charging Temperature0℃ to 45 ℃(32°F to 113°F) @ 60±25% Relative Humidity
Discharge Temperature-20℃ to 60 ℃(-4°F to 140°F) @ 60±25% Relative Humidity
Storage Temperature0℃ to 45 ℃(32°F to 113°F) @ 60±25% Relative Humidity
CasingCasing
Dimension(L*W*H*TH)522*238*218mm
WeightApprox.25Kgs
TerminalM8
Ingress ProtectionIP65
