Description
| Model | RTSK-EV32-16A |

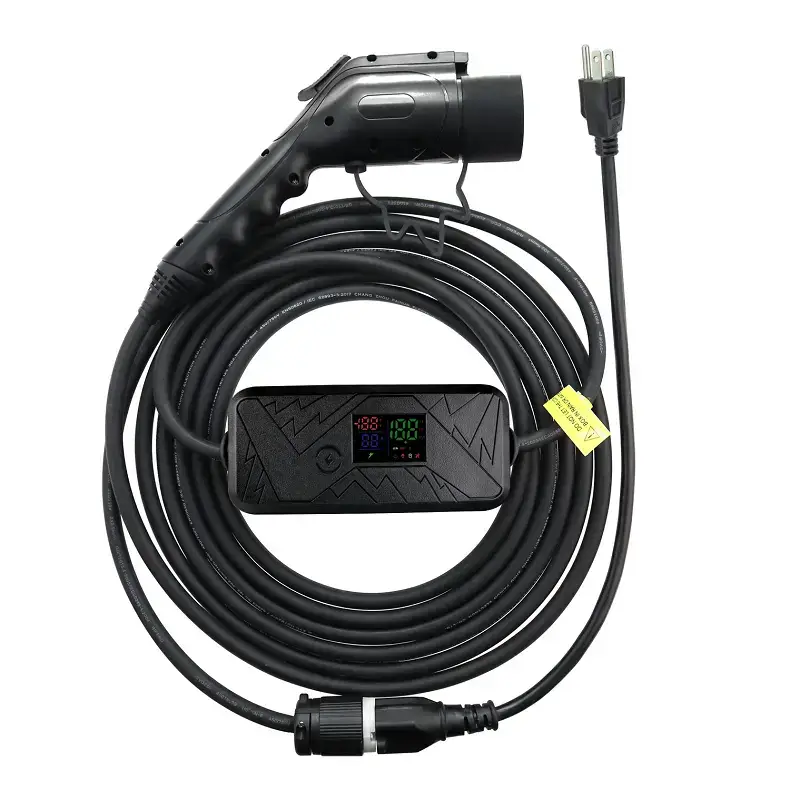

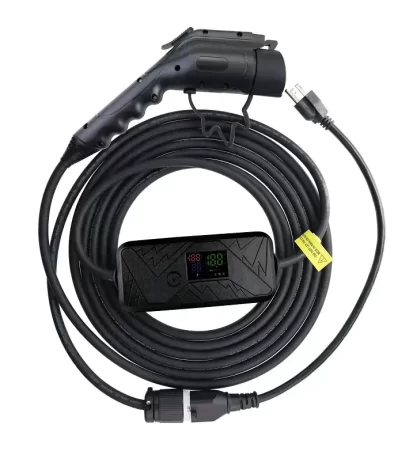

| Product Name | Portable EV Car Charging Pile |
| Input | 85V-480V |
| Output | 85V-480V |
| Length of Cable | 5M or customized |
| Insulation Resistance (cable) | >1000MΩ (DC500V) |
| Contact Resistance | 0.5mΩ MAX |
| Working Temperature | -20℃~60 ℃ |
| Waterproof Grade | IP55(mating) |
| Plastic Shell | Thermoplastic Plastic |
| Capacity | 16A (10/13A are selectable) |
| Output Power | 110(Level 1)/ 240V (Level 2) AC |
| Cable | 25feet (NEMA5-15 &NEMA6-20) |
| TypeA+DC 6mA | (30mA AC RCD + 6mA DC RCD） |
| Charging Connector | UL 2251 |
| Rated Power | Up to 3.8KW(Default 16A) |
