| Model | RTXY48V/5.76KWH |
| Battery Capacity | 5.76kwh(0.3C@25℃) |
| Maximum Discharging Power | 5kw |
| Depth of Discharge(DOD) | 90% |
| Norminal Battery Voltage | 48Vdc |
| Battery Voltage Range | 37.5-54.75Vdc |
| Max. Charging Voltage | 54.75Vdc |
| Continuous Discharging Current | 100A(25℃) |
| Continuous Discharging Current | <80A(35℃) |
| Continuous Discharging Current | <50A(45℃) |
| Continuous Charging Current | <50A(25℃) |
| Peak Discharging Current | <120A(25℃,10s) |
| Efficiency | >97% |
| Operating Environment | Indoor/Outdoor |
| Operating Temperature | -10℃~45℃ |
| Operating Humidity | <95% |
| Altitude | <3000m |
| Dimensions(W*H*D) | 890mm*643mm*178mm |
| Weight | 78kg |
| Cooling Method | Natural Convection |
| Enclosure Material | Aluminum |

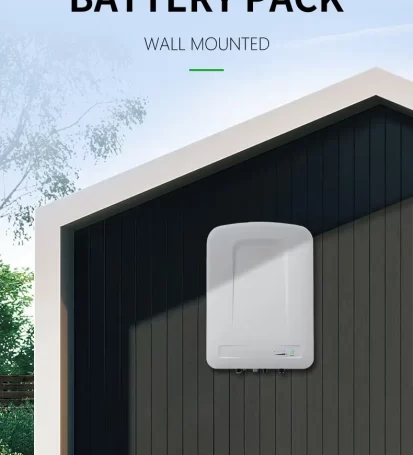

| Installation | Wall-mounted |
| Enclosure Type | IP65 |
| Maximum Parallel Battery Packs | 8 |
| Parallel Setting | Auto-detect |
| Warranty | 7 years (1 cycle per day) |
| Life Cycle | >10 years |
| Communication | RS485/CAN |
| Multiple Protection | Triple hardware protection mechanism(Manual switch, Contactor, Fuse) |
| Protection Type | Overcurrent, Overvoltage, Shortcircuit, Undervoltage, Overtemperature, Undertemperature |
