Description
Model | RTNT60DCG2 |

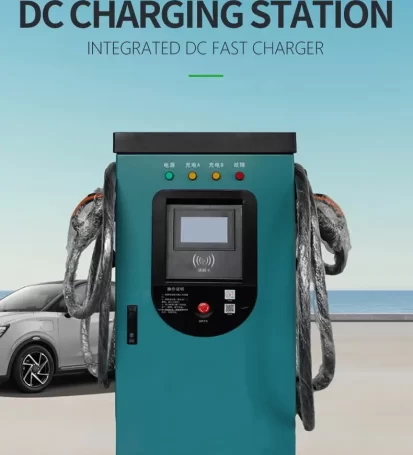

Product Name | EV Car Charging Station |
Output Power Rating | 60Kw |
Input Voltage | 400VAC |
Input Frequency | 50/60Hz |
Output Voltage | DC 200V-1000V |

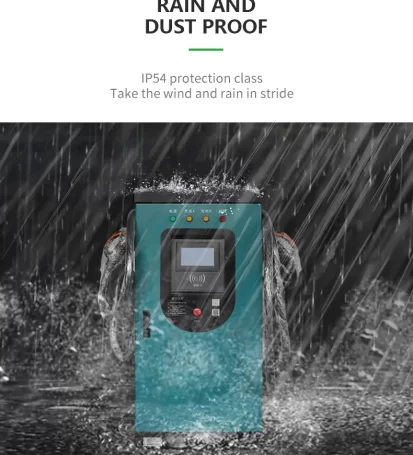

Protection Grade | IP54/IP65 |
Charger Plug | CCS2 |
Temp. | -20℃~60 ℃ |
Enviroment | RH 5%-95% |
Maximum Installation Height | ≤2000m |
Case Material | ABS + PC+Metal |
Cable Length | 5 meters |

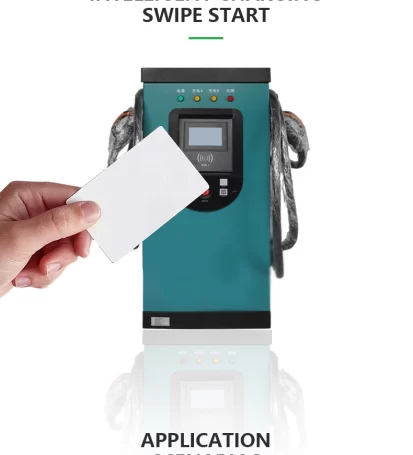

Start Mode | Insert card/Swip card |
Standard | CE |

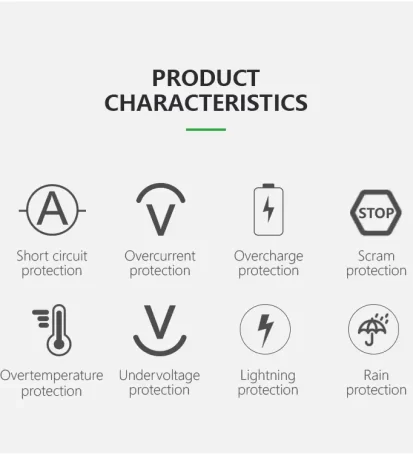

Protection | Over Current, Under Voltage, Over Voltage, Short Circuit, Residual Current, Surge Protection, Over Temperature, Ground Protection |

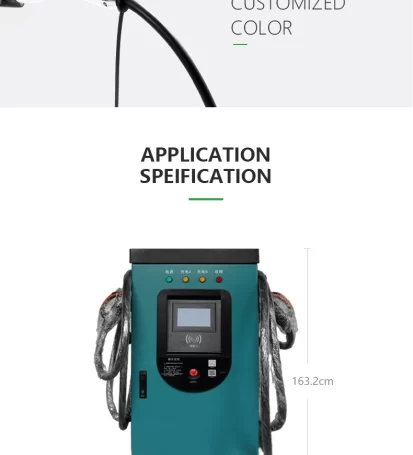

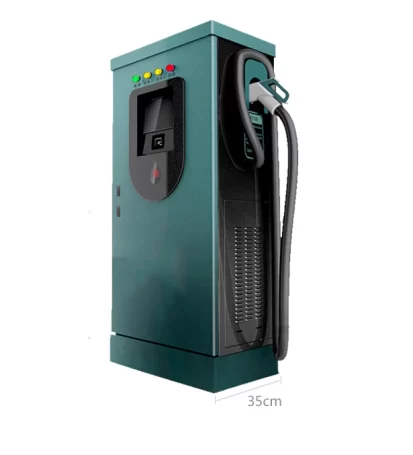

Mainbody Size | 1582mm*794mm*460mm |
