Description
| MECHANICAL SPECIFICATION | |
| Cell Type | N-type Topcon |
| Cell Arrangement | 108 (6*18) |
| Weight | 22.0kg |

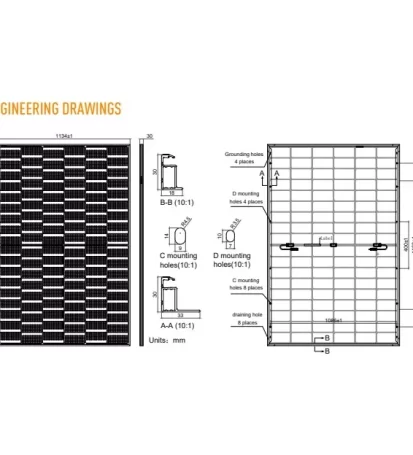

| Module Dimensions | 1722*1134*30mm |
| Cable Length | +400mm, -200mm or ±1200mm, length can be customized |
| Cable Cross Section Size | TUV: 4mm ²(0.006inches²)/UL:12AWG |
| Front Glass | 2.0mm high transmittance, AR coated tempered Glass |
| Rear Glass | 2.0mm high transmittance, coated tempered Glass |
| No. of Bypass Diodes | 3 |

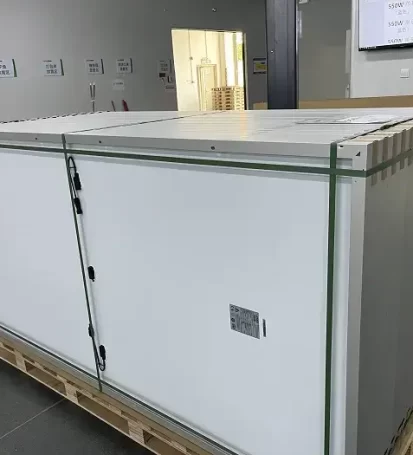

| Packing Configuration | 36pcs/carton, 936pcs/40hq |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 |
| OPERATING CONDITIONS | |
| Maximum System Voltage | 1500V DC(IEC) |
| Operating Temperature | -40℃-+85℃ |
| Maximum Series Fuse | 30A |
| Static Loading | Snow Loading: 5400Pa/ Wind Loading: 2400Pa |
| Conductivity at Ground | ≤0.1Ω |
| Safety Class | II |
| Resistance | ≥100MΩ |
| Connector | T01/LJQ-3-CSY/MC4/MC4-EVO2 |
| TEMPERATURE COEFFICIENT | |
| Temperature Coefficient Pmax | -0.30%/℃ |
| Temperature Coefficient Voc | -0.25%/℃ |
| Temperature Coefficient Isc | +0.046%/℃ |
| NMOT | 45±2℃ |
