Description
| MECHANICAL SPECIFICATION | |
| Cell Type | Monocrystalline |
| Weight | 28.6kg |
| Module Dimensions | 2278*1134*35mm |
| Cable Length | Portrait 300mm/Landscape 1200mm/Customized |
| Cable Cross Section Size | TUV: 4mm² (0.006inches²)/ UL: 12AWG |
| Front Glass | 3.2mm (0.13inches) AR Coating Tempered Glass |
| No. of Bypass Diodes | 3 |

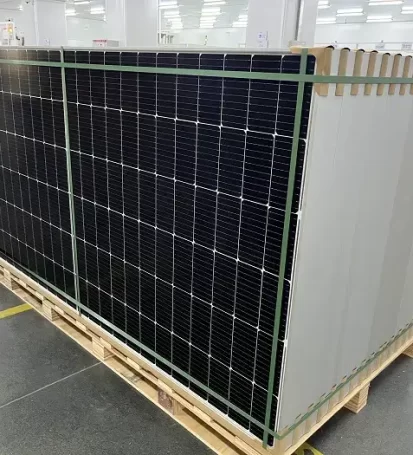

| Packing Configuration | 31pcs/carton, 620pcs/40hq |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 |
| OPERATING CONDITIONS | |
| Maximum System Voltage | 1000/1500V/DC(IEC) |
| Operating Temperature | -40°C~ +85°C |
| Maximum Series Fuse | 25A |
| Static Loading | Snow Loading: 5400Pa/ Wind Loading: 2400Pa |
| Conductivity at Ground | ≤0.1Ω |
| Safety Class | II |
| Resistance | ≥100MΩ |
| Connector | T01/LJQ-3-CSY/MC4/MC4-EVO2 |
| TEMPERATURE COEFFICIENT | |
| TEMPERATURE COEFFICIENT | -0.36%/°C |
| Temperature Coefficient Voc | -0.29%/°C |
| Temperature Coefficient Isc | +0.048%/°C |
| NMOT | 45±2°C |
